D.A.D.

Student project, Samsung Solve for Tomorrow top 100 of 7,000+ 2021 to 2022

GitHub repo Walkthrough video (10 min)

D.A.D. is a smart home for a person with dementia. ESP8266 sensor modules, a Raspberry Pi hub, a PHP/SQL API, and a mobile app. Four-person senior thesis.

I wrote the app and the PHP/SQL API. Login, module dashboard, reminders, contact editing, barcode pill refills, wander alarm hours, facial recognition.

The modules report to the hub over WebSockets. The hub checks each reading against safe values and calls, texts, and emails the family when one is off.

Pill dispenser with spoken reminders that sorts refills by barcode and keeps count. Smoke sensor and a stove knob that shuts off on smoke or a finished timer. Ultrasonic bath sensor that fires when the tub is nearly full. Hall-effect sensor that knows when the washer or dryer is done. Reed switch on the door.

Wander alarm. If the phone is more than a quarter mile from home during the hours the family set, or the door opens, every caretaker gets a call, a text, and an email.

Samsung Solve for Tomorrow, top 100 of 7,000+. $6,500 for the school. I wrote a thesis on the build.

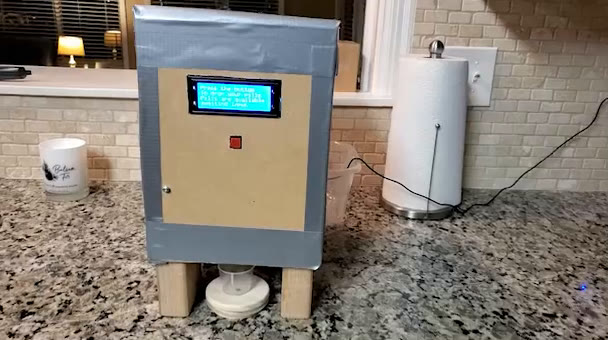

  • Pill dispenser with an LCD screen and a red button on a kitchen counter
    Pill dispenser

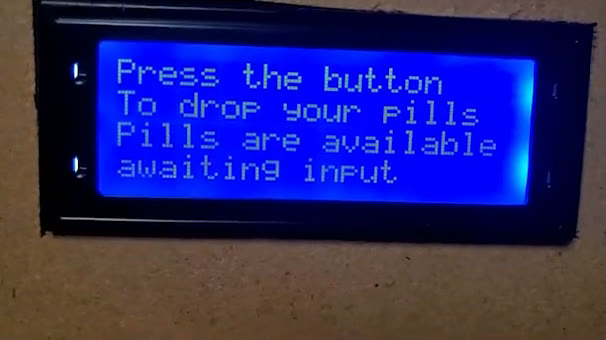

  • Dispenser screen reading: press the button to drop your pills
    Dispenser prompt

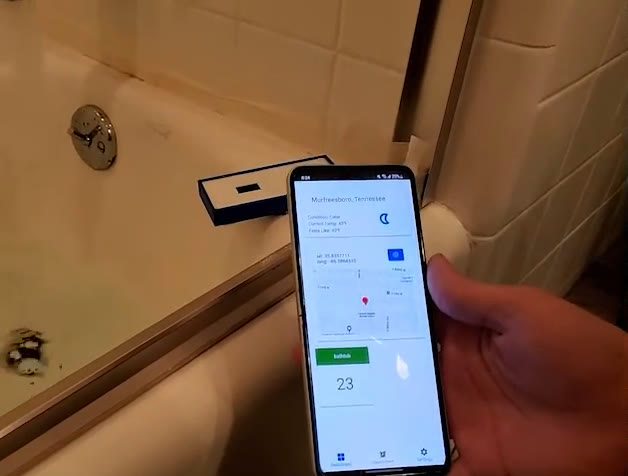

  • Ultrasonic sensor mounted on a bathtub wall with the app open beside it
    Bath sensor and the app

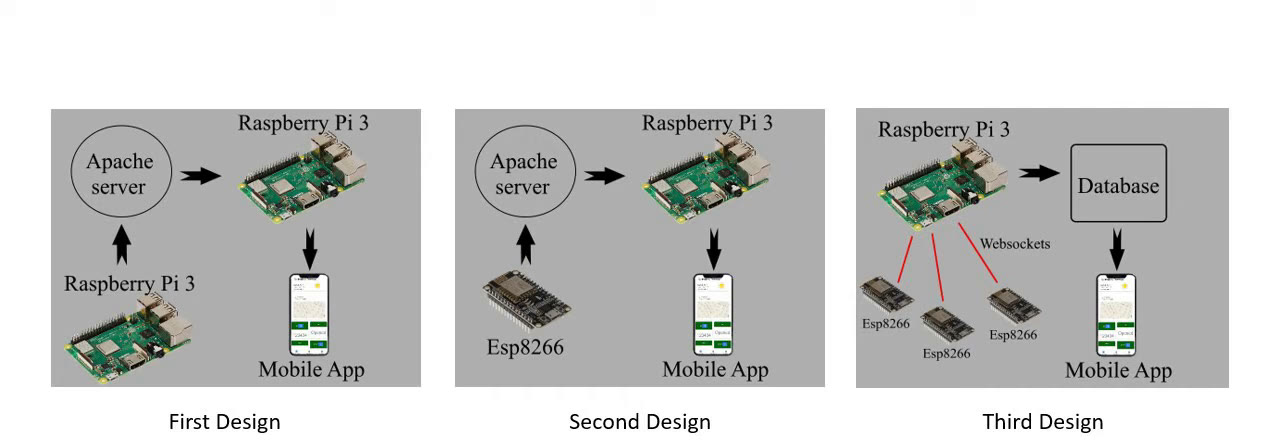

  • Three server designs: a Raspberry Pi per module, ESP8266 modules with Apache, then ESP8266 modules on WebSockets with a database
    Three server designs. We built the third

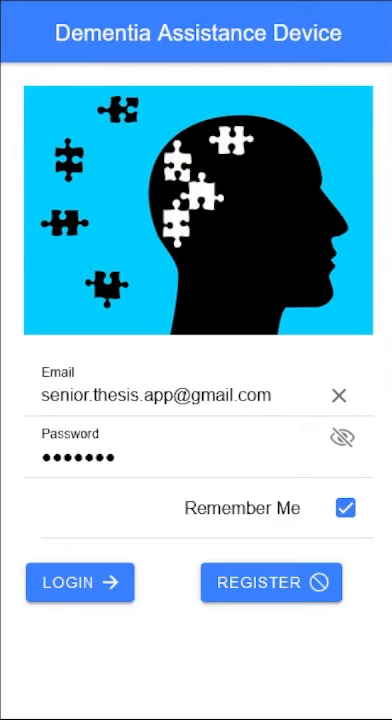

  • App login page with email, password and remember me
    Login

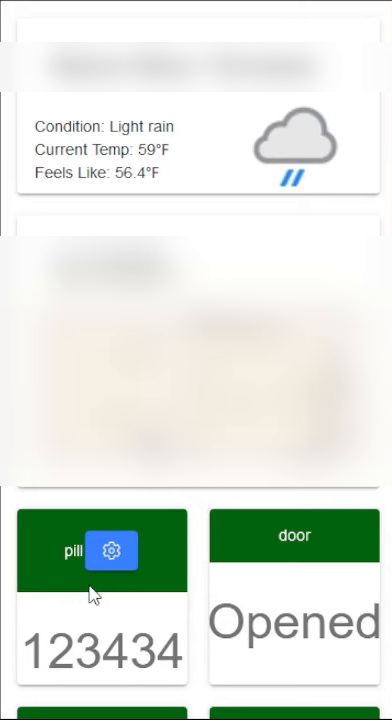

  • Dashboard with weather, a blurred location map, and pill and door status tiles
    Dashboard, location blurred

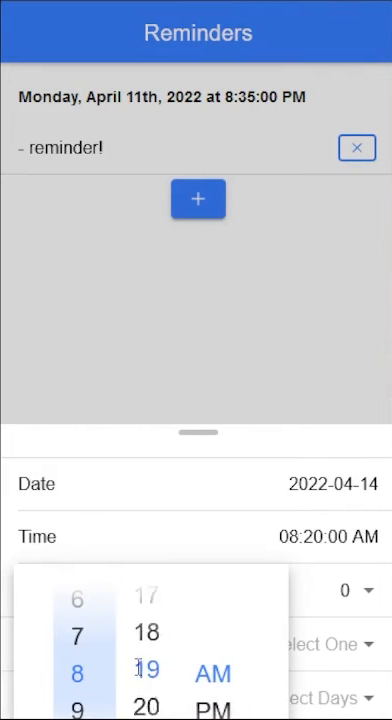

  • Reminders page with one reminder and a form to add another
    Reminders

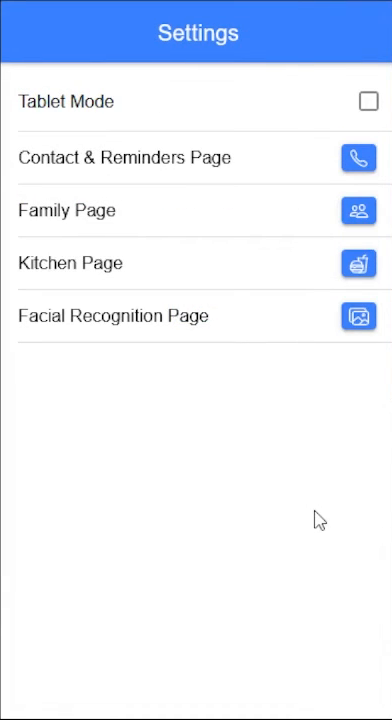

  • Settings page listing contacts, family, kitchen and facial recognition pages
    Settings

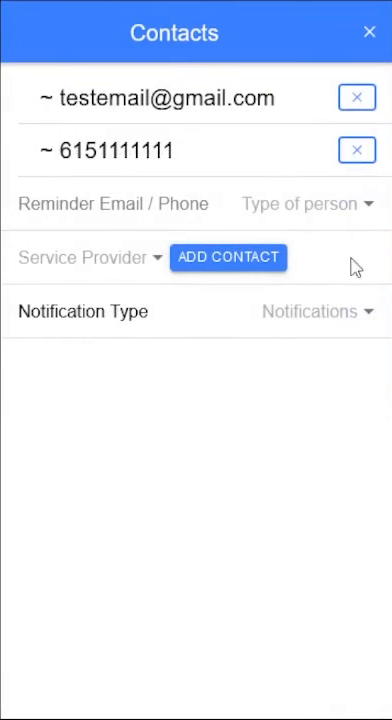

  • Contacts page with a test email and phone number and an add contact form
    Contacts

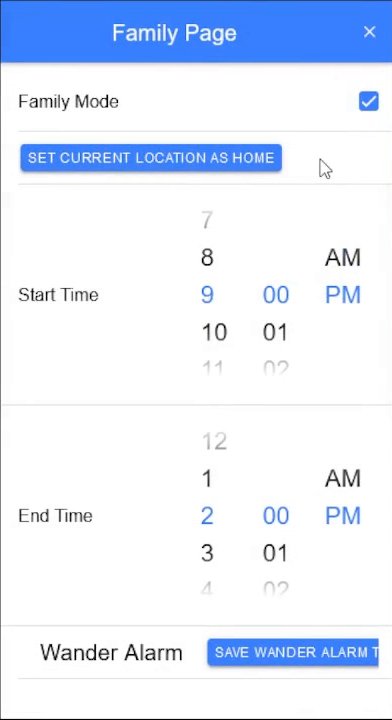

  • Family page with a set home location button and wander alarm start and end times
    Wander alarm hours

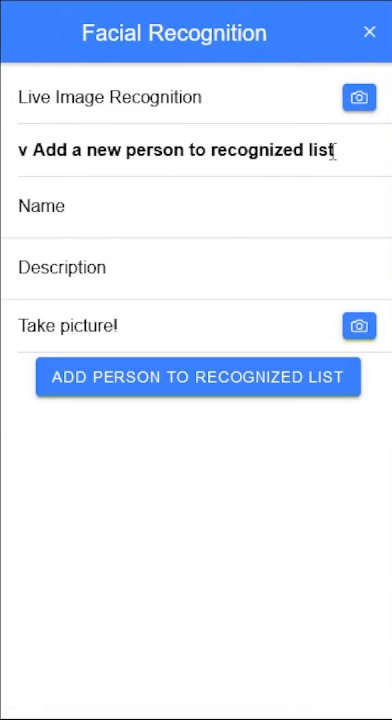

  • Facial recognition page with a form to add a person by name, description and photo
    Add a face

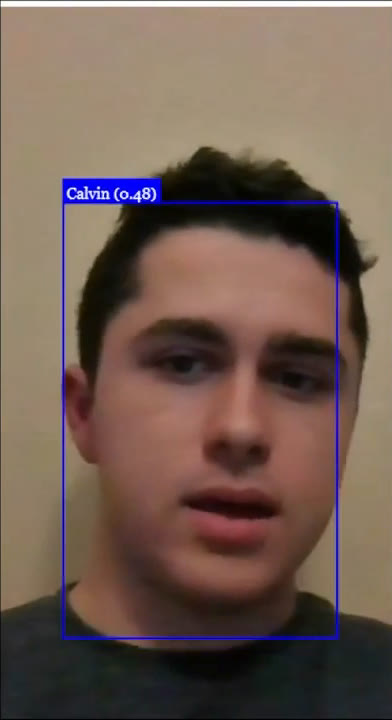

  • Live camera view with a box around my face labeled Calvin
    Live recognition
